Measuring Weld Defects During Visual Inspection
Visual inspection is one of the most common methods used to evaluate welds. While inspectors may look for overall workmanship and weld profile, visual inspection can also reveal surface discontinuities such as cracks, porosity, undercut, overlap, and other visible conditions.
Identifying a discontinuity is only part of the inspection process. Its size, extent, and location may also need to be measured and documented. Accurate measurements help turn a visual observation into objective information that can be recorded, evaluated, and communicated to others.
Why Measure Weld Defects?
Not every visible weld discontinuity is necessarily a rejectable defect. Whether a condition is acceptable depends on the requirements of the applicable code, standard, drawing, or specification. For this reason, simply noting that a discontinuity exists may not provide enough information. An inspector may need to determine how long an area of undercut extends, measure the dimensions of visible porosity, or establish the length of a surface crack. These measurements provide information that can be compared with the applicable acceptance criteria.
Measuring Cracks
Cracks are linear discontinuities that can occur in the weld metal, heat-affected zone, or adjacent base material. When visible at the surface, their location and apparent length should be documented. Crack length is generally measured from one visible crack tip to the other, following the direction in which the crack extends. If a crack branches, the main crack and its branches may need to be documented separately to accurately describe the indication. The location of the crack is also important. Identifying whether it occurs along the weld centerline, at the weld toe, within the heat-affected zone, or elsewhere provides additional information about the condition.
Measuring Undercut
Undercut is a groove melted into the base material adjacent to the weld toe or weld root that has not been filled with weld metal. When undercut is observed, both its depth and its length may be relevant to evaluation. Depth is measured from the adjacent base material surface to the deepest point of the undercut, while length describes the distance over which the condition extends along the weld. Undercut may occur as a single continuous area or as several separate areas along the same weld. When multiple areas are present, their individual lengths and overall distribution may need to be documented depending on the applicable acceptance criteria.
Measuring Visible Porosity
Porosity consists of cavities formed by gas trapped in the weld metal during solidification. When porosity is open to the surface, it may be visible during visual inspection as rounded or irregular openings in the weld face. Individual pores can be measured across their visible dimensions. When multiple pores are present, the number of pores, their approximate size, and the distance between them may also be relevant. The overall distribution can be just as important as the size of an individual pore. A few isolated pores and a group of closely spaced pores may be evaluated differently depending on the applicable acceptance criteria.
Documenting Defect Location
Size is not the only useful measurement during visual weld inspection. The location of a discontinuity may also need to be established so that it can be identified again later. On a short weld, a written description may be enough. On larger components or long welds, however, a more precise location can be useful.
An inspector can establish the position of a discontinuity by measuring from a recognizable reference point, such as the end of the weld, an edge of the component, a joint intersection, or another permanent feature. For example, an inspection record might identify a discontinuity as beginning a certain distance from the end of a weld and continuing for a specified length. This allows inspectors, welders, engineers, or repair personnel to return to the same location without relying solely on photographs or visual descriptions.
Measurement References in Inspection Photographs
Photographs are often used to supplement visual inspection records, but photographs alone do not always communicate size effectively. The apparent size of a discontinuity can change considerably depending on camera distance, angle, and magnification. Including a measurement reference in the same plane as the discontinuity provides scale and allows the dimensions shown in the photograph to be interpreted more easily.

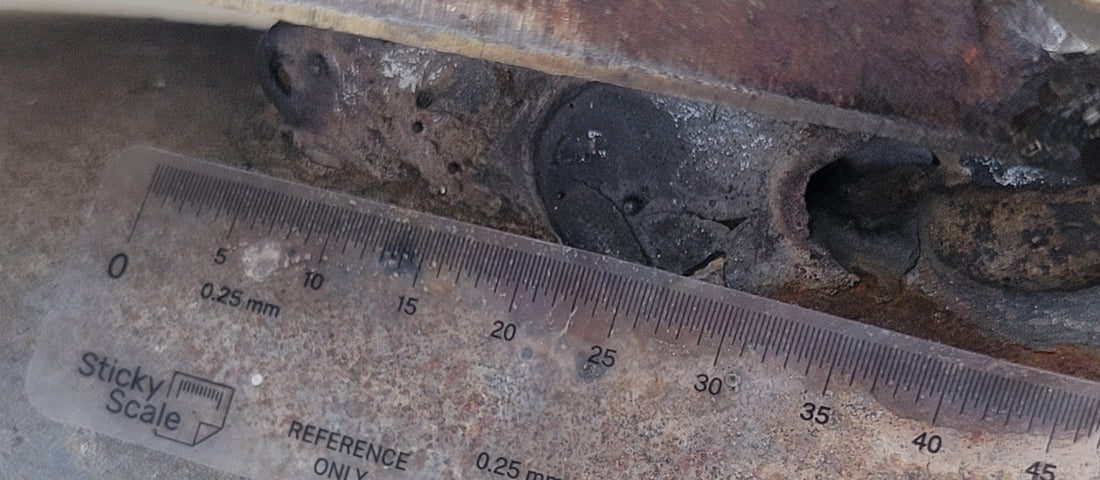

For curved, irregular, or difficult-to-access surfaces, flexible or adhesive measurement scales can be particularly useful because they can remain positioned directly on the component while the photograph is taken. This can help document both the dimensions of the discontinuity and its position relative to nearby features without requiring the inspector to hold a rigid ruler in place.
Creating Better Inspection Records
Visual inspection records may be reviewed by people who were not present when the weld was originally examined. Clear measurements provide those reviewers with more information about what the inspector actually observed. Instead of relying solely on descriptions such as "small area of undercut" or "several pores," an inspection record can document measurable characteristics such as length, depth, diameter, spacing, and location where applicable.
Photographs can then provide additional visual context. Together, written measurements and photographs create a more complete record of the condition of the weld at the time of inspection. This information can remain useful even after the weld has been repaired or the component has moved to another stage of fabrication.
Final Thoughts
Visual weld inspection relies heavily on what an inspector can see, but measurement helps turn those observations into objective information. The dimensions that matter vary depending on the type of discontinuity. Cracks may be characterized by their length and location, undercut by its depth and extent, and visible porosity by the size and distribution of individual pores. Accurately recording these characteristics provides a clearer basis for evaluating weld quality and creates inspection records that can be understood and referenced long after the original inspection has taken place.
